Base pairs

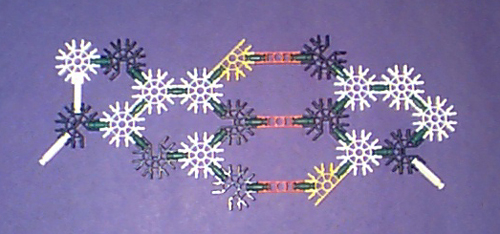

 Attached to each sugar ring is a nucleotide base, one of the four bases Adenine (A), Guanine (G), Cytosine (C), and Thymine (T). The first two (A, G) are examples of a   purine which contains a six atom ring and five atom ring sharing two atoms. The second two (C, T) are examples of a pyrimidine which is composed of a single six atom ring. A base pair is one of the pairs A-T or C-G. Notice that each base pair consists of a purine and a pyrimidine. The nucleotides in a base pair are   complementary which means their shape allows them to bond together with hydrogen bonds. The A-T pair forms two hydrogen bonds. The C-G pair forms three. The hydrogen bonding between complementary bases holds the two strands of DNA together. Hydrogen bonds are not chemical bonds. They can be easily disrupted. This permits the DNA strands to separate for transcription (copying DNA to RNA) and replication (copying DNA to DNA). In our simple model, the entire base pair structure is represented by the single blue rod. Various more elaborate models can be constructed to represent base pairs, including the one above which shows individual atoms and bonds.
